LK44 IR 44 key controller

Send Inquiry
Chat Now

Product Details

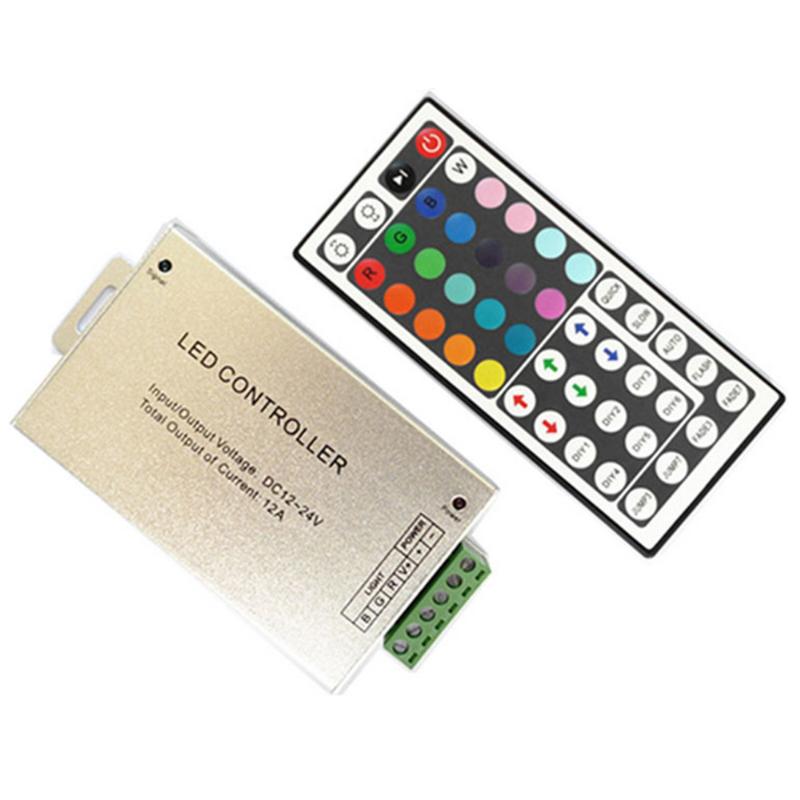

Wireless IR 44keys RGB LED Controller with remote DC12V~24V 12A/24A 144W/288W for SMD5050 SMD3528 LED Strip Lighting
Specifications:
Supply Voltage：DC5V or DC12V~24V( default dc12v~24v, if you need DC5V, pls specify when you place the order).
Output：3 CMOS Open drain Output
Static power consumption ：<1W
Output Current：12A( 3CH*4A) 24A(3CH*8A)
Connection mode：Common anode
Output Power：4A -5V:<60W, 12V:<144W, 24V:<288W

8A -5V:<120W, 12V:<288W, 24V:<576W

Control distance: 15 meters

Cautions:
1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
5. Warranty of this product is two year, but exclude the artificial situation of damaged or overload working.
