720W12V-M12Q-SD Operating manual

1、720W12V-M12Q-SD System features

1、RGB controller,with 12 channels.Use the software LedEdit V2.4 to do programs.

2、Can choose the output style,when load the single color,there are 12 channels in one set controller.When we do the program we choose T-1000S-XB002.When load the RGB led,there are 4 groups in one set. When we do the program we choose T-1000S-XB001.

3、The max output is 8A/channel.

4、Multiple controller can cascade synchronization,512 sets to be connect to synchronization at most.

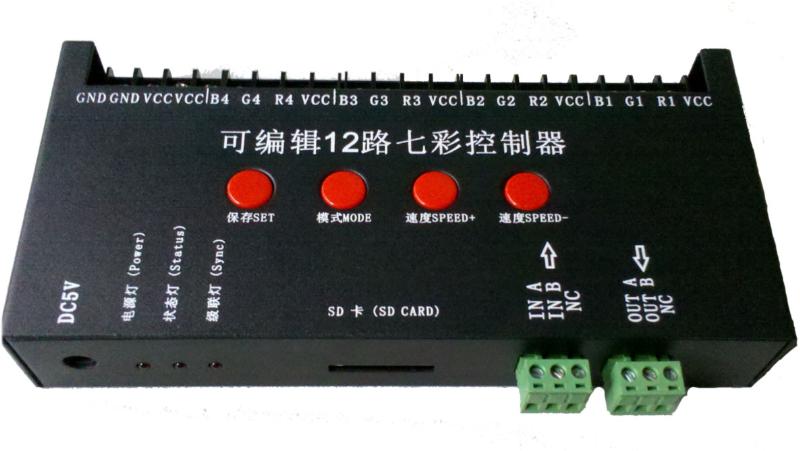

2、Definition of printing

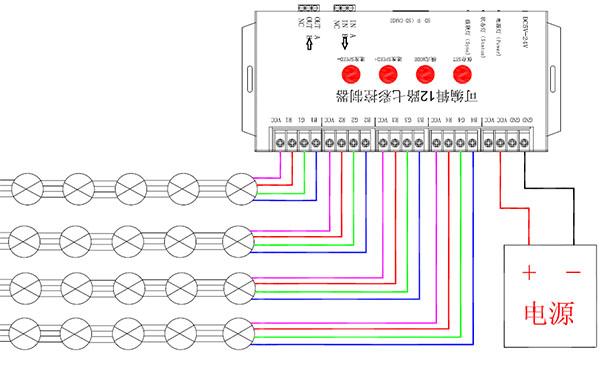

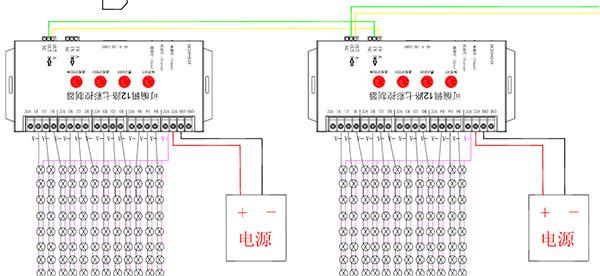

3、Mode of connection

(single color—12channels)

(RGB color—4channels)

4、Technical Parameters

  Memory card：

          type：SD card（suggest using high-speed SD card）

          Capacity：128MB—1GB

          Format：FAT

          Store file：*.led

Physical parameters：

          Working temperature ：-30℃—85℃

          Working voltage：DC5V / DC7.5-24V

          Working power：1W

          output current: <8A( each channel )

          connection mode: common anode

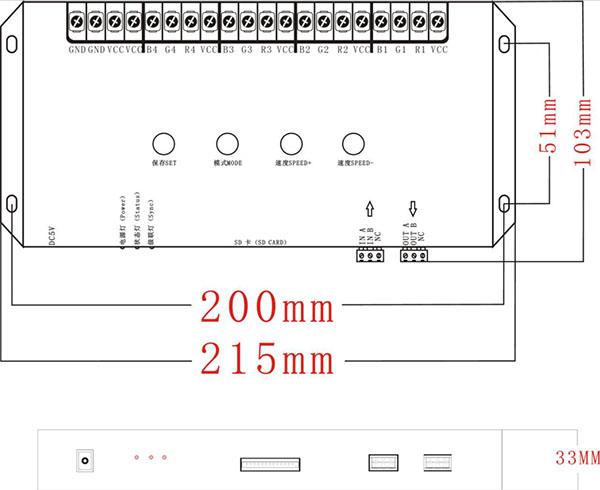

5、Dimensions：

6、About the software：LEDEdit2014 V2.4

How to do program in LedEdit

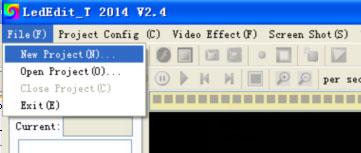

1. Open the software LedEdit2014,then New Project(N);

2.

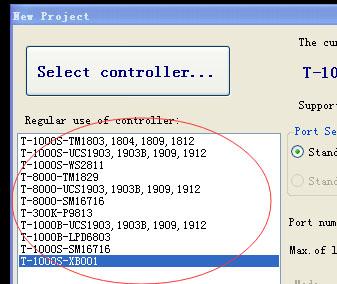

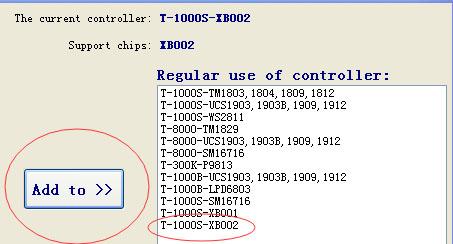

 If there is no the item you need,click the “Select controller”,

when load the single color, we choose T-1000S-XB002.When load the RGB led,we choose T-1000S-XB001.

If we do the program for single color,choose the T-1000S-XB002,then “Add to”

choose the item,

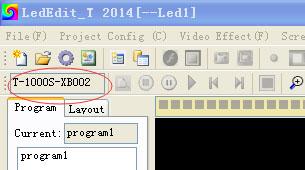

Then you can see the item is list on the software

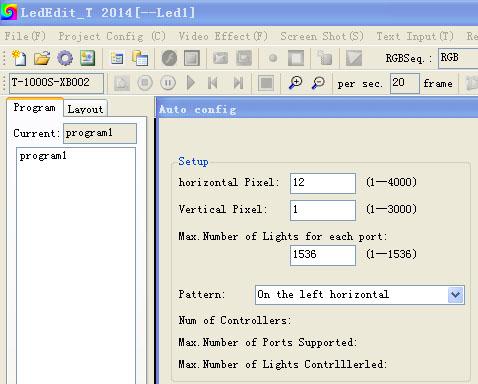

3.Auto layout

When we use one set controller,we Set the parameters like this(load the single color)

When we use 2 sets controllers,we set the horizontal pixel 24,vertical pixel 1……

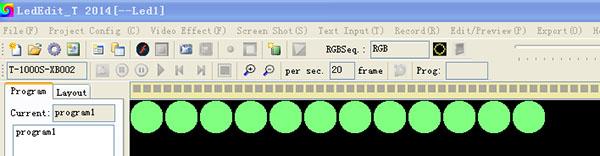

Then you can see there are 12 points in the software

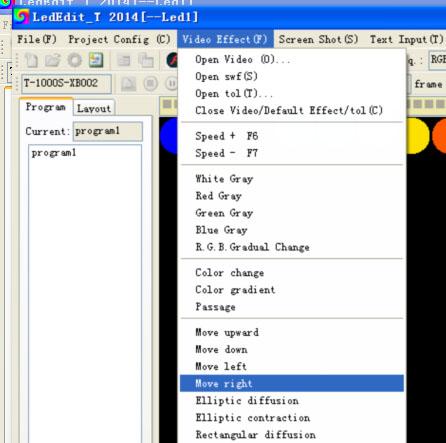

Open the “Video effect” to choose the effect,then Record the effect.

At the end,Export the program,copy the program to the SD card.

If there are many sets contect to use at the same time,all of the controllers copy the same program.

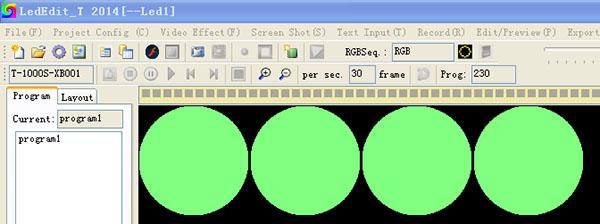

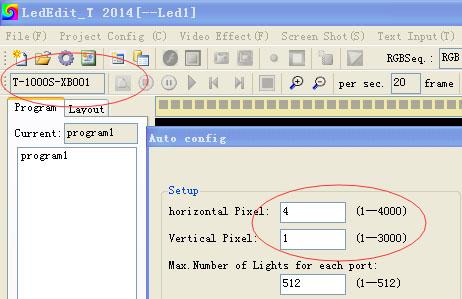

If load the RGB color led,choose T-1000S-XB001 at the step 2.And set like this at step 3

When we use 2 sets controllers,we set the horizontal pixel 8,vertical pixel 1……

NOTE：

The controller can store a maximum of 16 programs，copy multiple files to the SD card in order, after formatting the SD card as “FAT” format.

The program must be named in orders . just as ：00_1.led, 01_1.led, 02_1.led.
